1000V POY to DTY high speed polyester yarn texturing machine draw texturizing machine

Spindle

240spindles

264spindles

288spindles

312spindles

336spindles

Section

10

11

12

13

14

Spindle Pitch

110mm

Highest Mechanical speed

1000m/min

Raw meterial and Fibre Number

Polester 55-222dtex(50-200Denier)

Section Size

1440mm

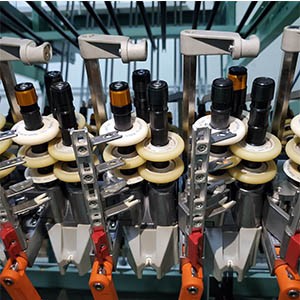

Flase twist way

Folding disc 8 type false twister,firction false twisting

The highest speed of false twist device

18000r/min

False twist direction

S,Z adjustable

The first heat box(distortion)

Biphenyl gas phase heating/2000mm

The second heat box(figuration)

Biphenyl gas phase heating/2000mm

Defomation heat box temperature range

160-250℃

Figuration heat box temperature range

Low temperature biphenyl as100-160℃

Cooling mode and length

Cooling plate to cool naturally/1100mm

Friction roller diameter

Φ100mm

Roller diameter

Φ75mm

Oiling roller diameter

Φ75mm

Largest original yarn size

Φ435*250mm

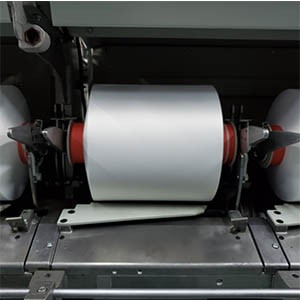

Maximum take-up size

Φ250*250mm

Standard take-up capacity weight

5kg

Take-uppaper pipe specificationgs

Φ69*Φ57*290mm

Total power

Drive

93.5kw

107.5kw

110.5kw

122.3kw

127kw

Up heat box

68kw

74.8kw

81.6kw

88.4kw

95.2kw

Below heat box

24kw

26.4kw

28.8kw

31.2kw

33.6kw

Assist power

About 6kw

Total power

191.5kw

214.7kw

226.9kw

247.9kw

261.8kw

Dimension(fixed the original holder)

19000*7020*5360mm

20440*7020*5360mm

21880*7020*5360mm

23320*7020*5360mm

24760*7020*5360mm
